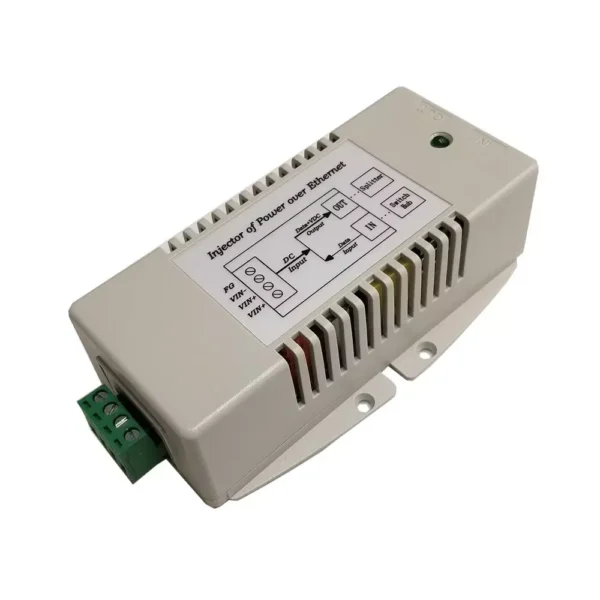

The 10G compatible TP-DCDC-1256GD-BT and TP-DCDC-2456GD-BT are 802.3at/bt compatible high power DC to DC converters/ Bluetooth PoE inserters designed for operation in industrial environments. The inserters conform to the new IEEE802.3bt Power Over Ethernet standards for industry compatibility. The PoE inserters supply 56VDC PoE power on all 8 Ethernet wires (4 Pair). They are backward compatible with 802.3at so they will safely power 802.3at and 802.3af devices in addition to the new 802.3bt devices.
The wide input voltage range (10VDC to 60VDC) of the TP-DCDC-1256GD-BT makes these units universal in battery powered applications. The TP-DCDC-2456GD-BT Bluetooth POE inserter is a lower cost option for applications with 18-36VDC available. The input and output are isolated so they work in a negative ground or positive ground system. They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for low voltage, surge, short circuit and overload.
