60GHz Wireless Distribution Unit - Altowave D423

D423 – 3-Port 60GHz Wireless Distribution Node/Client, Outdoor

Name: D423 - 3-Port 60GHz Wireless Distribution Node/Client, Outdoor - Solutions Safda
Brand: Altowav
SKU: AW3-D423-3C-W
Price: 1530.00 CAD
Availability: InStock

AltoPlex D423 60GHz Wireless Distribution or Client, 2X RF, 90° scan, 2Gbps aggregate, 3 x RJ45 1GbE, 2x PoE out (up to 60W per port max. 75W PoE out with 90W input), GPS, Wi-Fi (mgt.), built-in wall/pole mount, IP67.

MANUFACTURER :

Altowav

SKU AW3-D423-3C-W Categories Datacom, Telecom

$1,530.00

For volume discounts, ask for a quote.

Ajouter au devis

Description

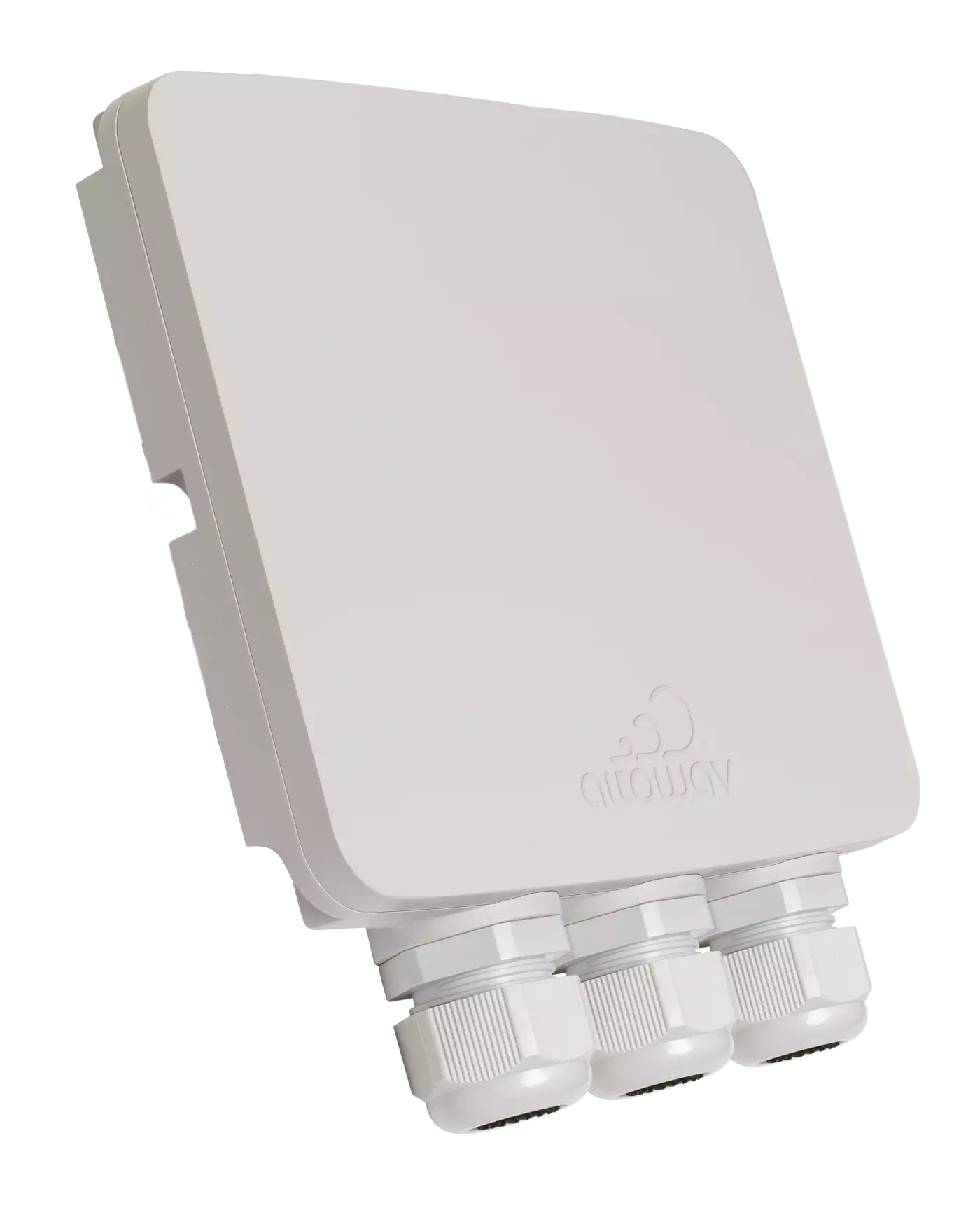

The D423 is a 60GHz wireless distribution radio with integrated 128-element beamforming antenna that provides best-in-class link resiliency and full capacity range in a compact form factor. It supports PtMP and can be configured as either a distribution node or client for maximum flexibility. The D423 also features 3 built-in gigabit RJ-45 Ethernet ports, two of which support PoE output for additional devices. The D423 is carrier-grade, manufactured in the USA and features IP67 weather-sealing for reliable operation outdoors and in harsh environments.

Features

High Capacity: Up to 2Gbps aggregate
Low Latency: Sub 1ms latency
Adaptive Beamforming: 128-element, phased array, beamforming antenna with 90° azimuth and 40° elevation scanning for maximum link resiliency and ranges up to 1312ft (400m) MCS-9
Gigabit Ethernet: 1 gigabit RJ-45 PoE input, 2 gigabit RJ-45 PoE outputs for connecting cameras, Wi-Fi APs, or collocated Altowav radios
Wi-Fi Management and GPS Location: Connect locally using the Wi-Fi network interface to manage the radio directly. Easily locate the radio using the integrated GPS receiver.
Dense Network Ready: 60GHz spectrum with beamforming and TDMA for extremely reliable dense networks
Security: AES 128 encryption with automatic secure key distribution
Carrier-Grade: IP67 rated enclosure and built in USA for reliable, long-term operation in the field
Simple and Rapid Installation: Altowav’s antennas auto-align for easy installs, and our Open API and native layer 2 architecture enable easy integration into operators’ existing networks
