48 VDC PoE to 24 VAC active PoE voltage converter/splitter with up to 80 W output, 24 VAC at ~3.34 A, 10/100/1000 Mbps data pass-through, and protections for short-circuit, over-current, and over-voltage.
Original price was: $69.81.$43.88Current price is: $43.88.

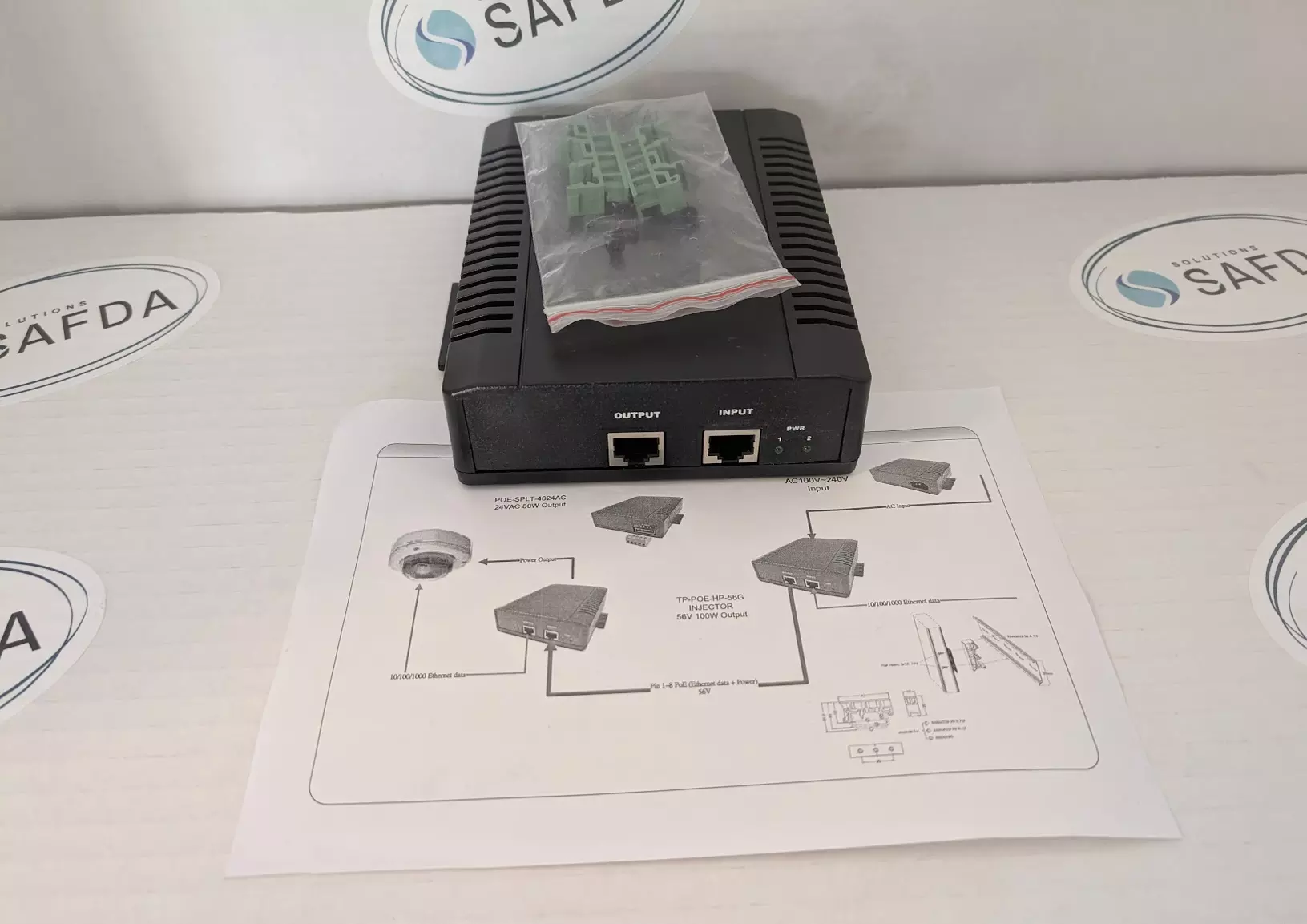

The Tycon TP-SPLT-4824AC is an active Power-over-Ethernet (PoE) splitter and voltage converter that converts a 48 VDC PoE input into a regulated 24 VAC output, ideal for powering 24 VAC cameras, sensors, and other AC-powered devices in remote installations. By accepting 48 VDC PoE input (typically from PoE injectors, switches, or hybrid systems), this unit provides reliable AC power where standard electrical outlets are unavailable, making it well-suited for security, telecom, and industrial applications that leverage PoE and battery power.
Engineered to support modern PoE standards, the TP-SPLT-4824AC voltage converter/splitter handles 802.3at/bt PoE input over all four pairs to deliver up to 80 W of power with a regulated 24 VAC output at up to ~3.34 A, enabling support for high-power devices such as PTZ cameras, heated enclosures, and other AC-driven equipment. The output is provided via a wire terminal connector that accepts up to 12 AWG wire for secure installation. Built-in protections such as short-circuit, overcurrent, and overvoltage help ensure safe and reliable operation even under demanding environmental conditions.
The TP-SPLT-4824AC voltage converter/splitter supports Ethernet data rates up to 10/100/1000 Mbps, ensuring network connectivity remains intact while delivering power over the same cable infrastructure. Its durable design and options for DIN rail mounting make it suitable for both indoor and outdoor enclosure applications where hybrid PoE/battery power systems are deployed. LEDs on the unit indicate input and output status to aid with on-site troubleshooting and installation verification.
